An essential oil distillation unit separates the volatile aromatic compounds of a plant from the plant material using steam or boiling water. The vapour carries the essential oil to a condenser, where it cools back into a liquid, and the oil is then separated from the hydrosol in a Florentine flask. Dünder Makine manufactures complete distillation units in stainless steel and copper, from 80 kg traditional rose stills to 5,000 litre industrial steam distillation lines. For solvent-based processes, see our absolute production systems and turbo extraction systems.

Every Dünder Makine distillation unit follows the same six basic stages of steam distillation. The heating method, still design and materials change according to the raw material and the production scale.

Fresh or dried plant material is loaded into the still, on baskets or directly into water depending on the method.

Steam from a boiler, solid fuel, electric resistances or a heating jacket brings the water or plant bed to distillation temperature.

Steam passes through the plant material and carries the volatile essential oil compounds out of the still.

Tubular or serpentine condensers cool the vapour back into a liquid mixture of essential oil and water.

In the Florentine flask, the essential oil separates from the water by density and is collected.

The hydrosol is collected as a product or redistilled in a cohobation system to recover the remaining oil.

Dünder Makine offers six distillation series. Use the overview below to find the right unit for your raw material and capacity, then see the full technical data of each series.

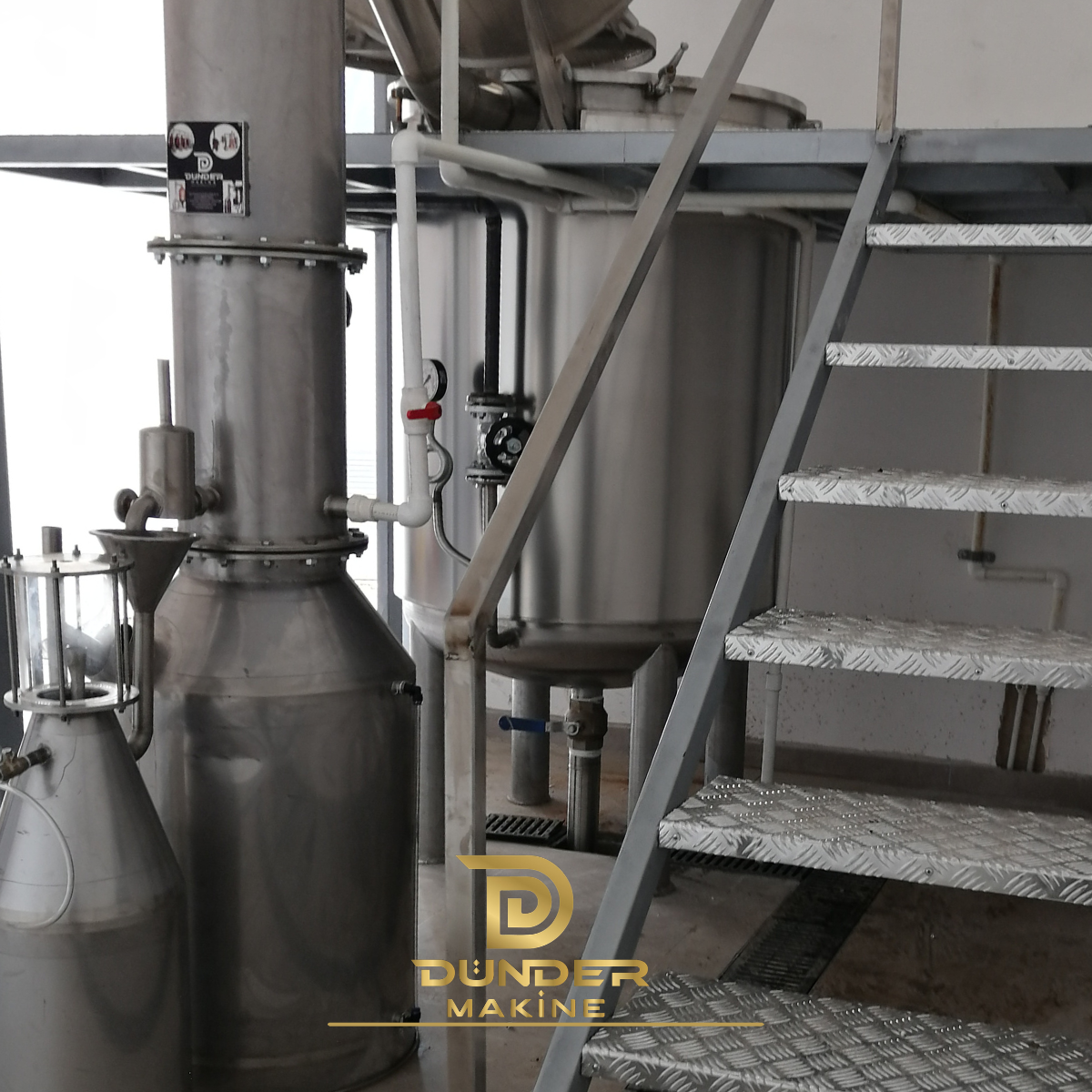

BI units work with an external steam generator. Steam is fed directly into the chamber holding the plant material, and the controlled steam flow protects delicate aroma compounds while extracting essential oil and hydrosol. BI models are mounted on a metal platform and operated with a crane system for safe and quick loading. Suitable for lavender, thyme, mint, rosemary, laurel and most aromatic herbs.

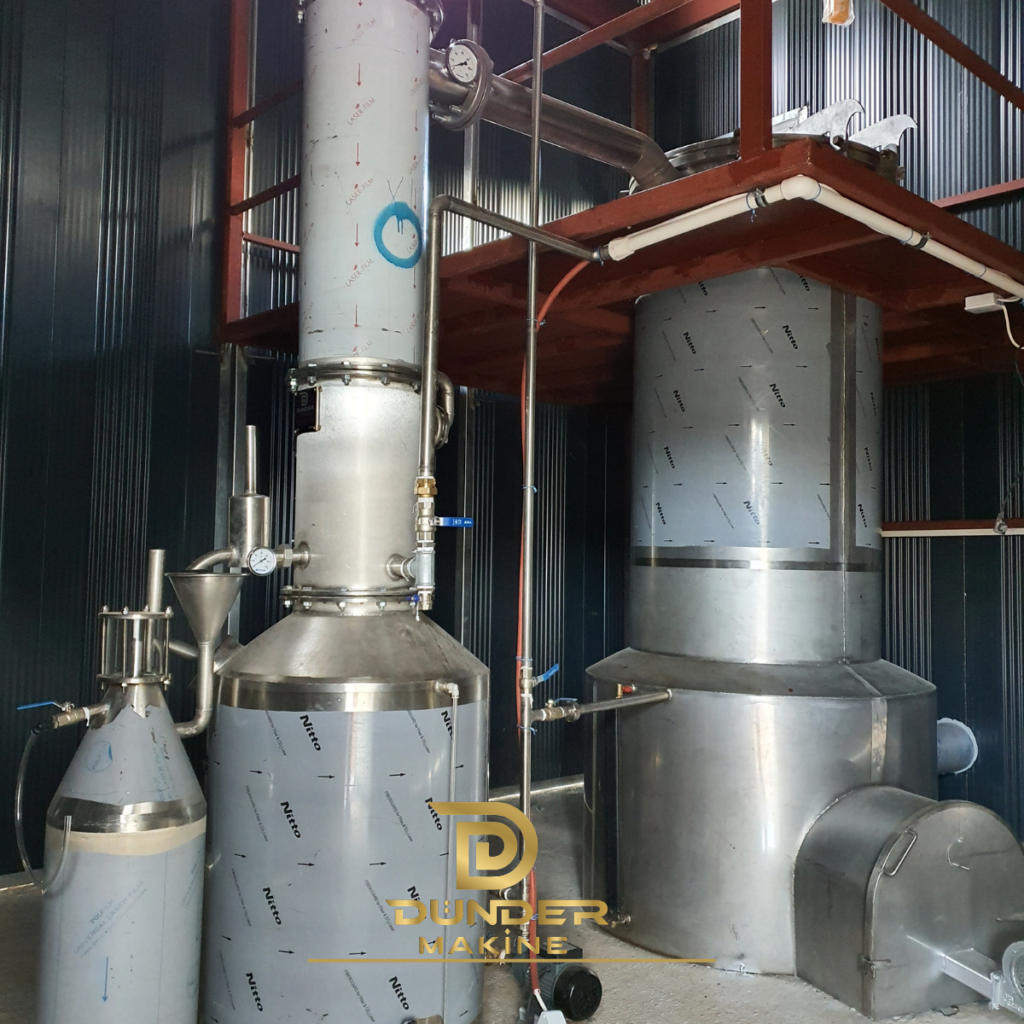

KY units heat the still with wood or other natural fuels, which keeps energy costs low and makes them practical where a steam boiler is not available. Every KY unit can also run on electricity with four 10 kW resistances, so producers can choose the energy source that suits their site.

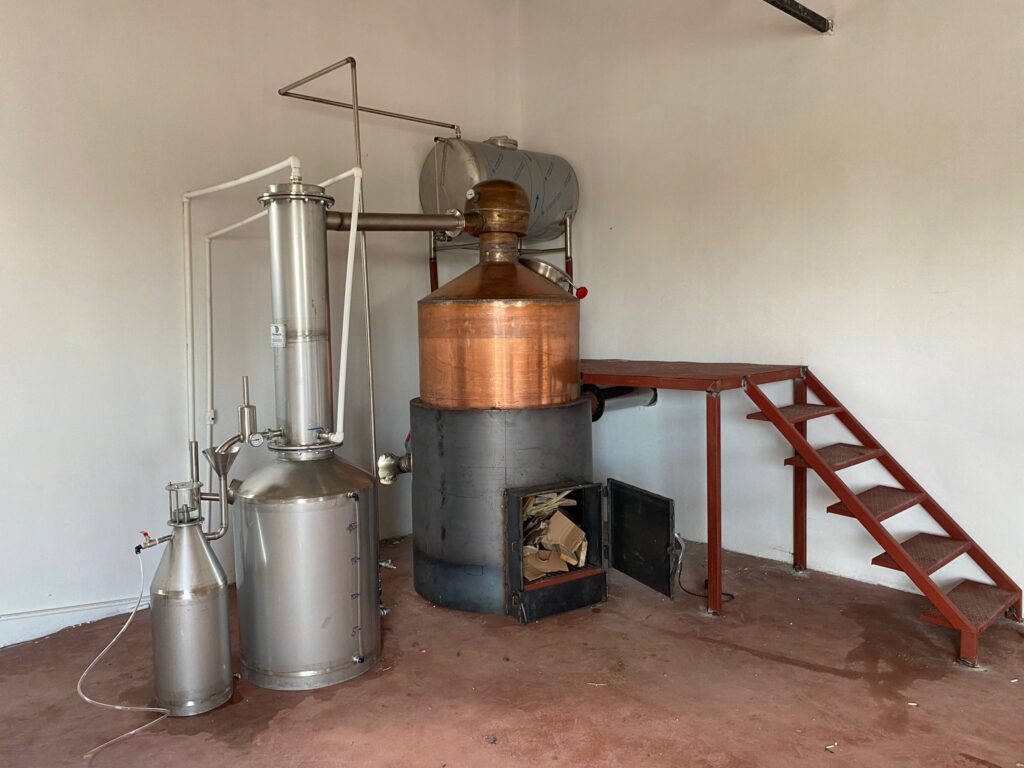

BK stills are built for Rosa damascena. Rose flowers are distilled in water heated by wood or a stoker, producing rose oil and rose water in their purest traditional form. Copper parts spread the heat evenly and help preserve the purity of the oil. Each model comes with its own storage tank.

CI units separate volatile compounds from plant resins. The resin and water mixture is heated indirectly through a heating jacket on the vessel wall, which gives uniform heat distribution, and the released compounds are condensed and collected. Designed for frankincense, myrrh, elemi and olibanum.

HBI units combine water distillation and steam distillation. Steam from an external generator passes through the plant material while heating coils raise the water temperature, giving balanced heating for high-quality essential oil and hydrosol.

HI units are industrial stills for Rosa damascena. Steam from an external generator heats the water in which the rose flowers are distilled, giving efficient and controlled production of rose oil and rose water at large scale. Available in stainless steel with copper.

All values are for reference. Our machines are standard designs and can be modified according to your raw material, capacity and site requirements.

Cohobation is applied after distillation. The hydrosol collected at the end of distillation is redistilled to separate the volatile compounds still dissolved in it. This raises essential oil yield and improves hydrosol quality, and it is especially important in rose oil production. Read more about our cohobation systems, and how rose waters are processed further in our phenyl ethyl alcohol production system.

Our distillation units are built for high essential oil yield, clean separation and reliable long-term operation, with heating options that match your site and energy costs.

Built from AISI 304 / 316 stainless steel, with copper options for traditional rose distillation.

Steam boiler, solid fuel, electric resistances or heating jacket, chosen to fit your site and energy costs.

Florentine flasks separate essential oil from hydrosol cleanly and continuously.

Optional cohobation recovers the essential oil that remains dissolved in the hydrosol.

Standard designs that we modify according to your raw material, capacity and site.

Design, manufacturing, installation, commissioning, operator training and maintenance from one supplier.

The full range covers small traditional stills and large industrial lines. Every unit is engineered according to your capacity and raw material.

Our distillation units process a wide range of flowers, herbs, leaves, peels and resins. The right series depends on the raw material, the product you want and your production scale.

Rosa damascena oil and rose water with BK and HI stills.

High-volume lavender oil with BI steam distillation.

Thyme oil and hydrosol for food, cosmetic and pharmaceutical use.

Peppermint and spearmint oil with steam distillation.

Rosemary oil with controlled steam flow.

Laurel (bay) leaf oil with steam distillation units.

Resin oils with CI jacket-heated units.

Bitter orange and citrus peel oils with steam distillation.

Essential oils and hydrosols from our distillation units are used across the fragrance, cosmetic, food and natural ingredients industries.

Essential Oil Producers

Farm and industrial distilleries producing oils for the global market.

Fine Fragrance

Rose oil and other essential oils for perfumery.

Cosmetics and Personal Care

Essential oils and hydrosols for skincare, soaps and body care.

Food and Flavour

Rose water and herbal hydrosols for food and confectionery.

Aromatherapy

Pure essential oils for wellness applications.

Pharmaceutical

Herbal oils such as thyme and mint for pharmaceutical use.

Answers to the most common questions about distillation methods, capacities, heating options and turnkey projects.

Tell us your raw material, daily capacity, preferred heating source and installation country. Our engineering team will recommend the right distillation series and prepare a customized proposal.

Trusted by customers in more than 30 countries since 1980, with complete engineering, manufacturing, installation and commissioning services. See our references.
